Device type

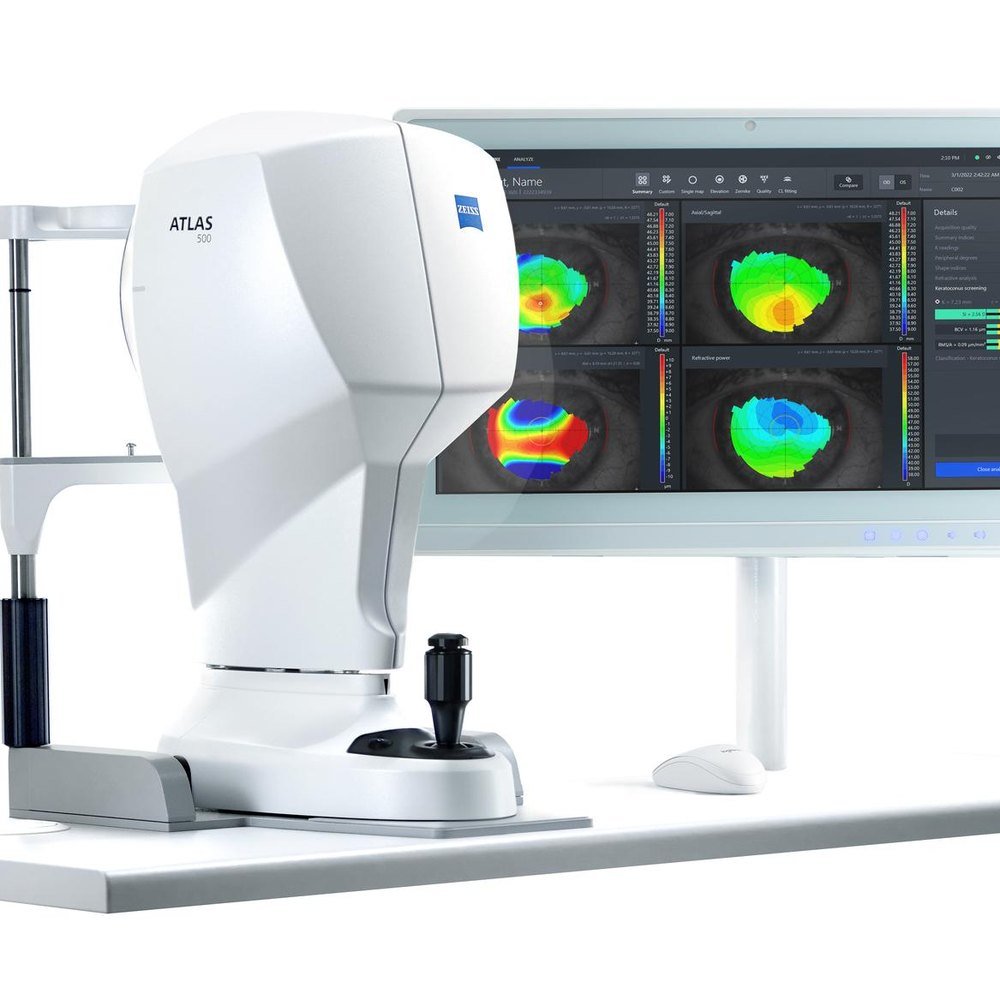

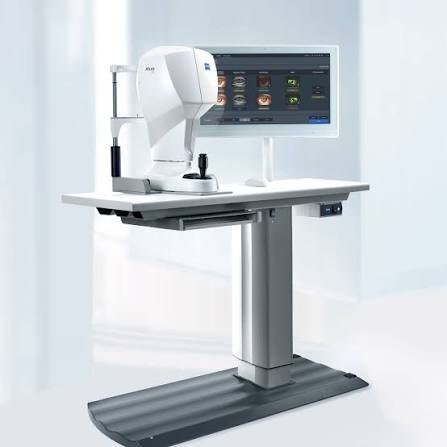

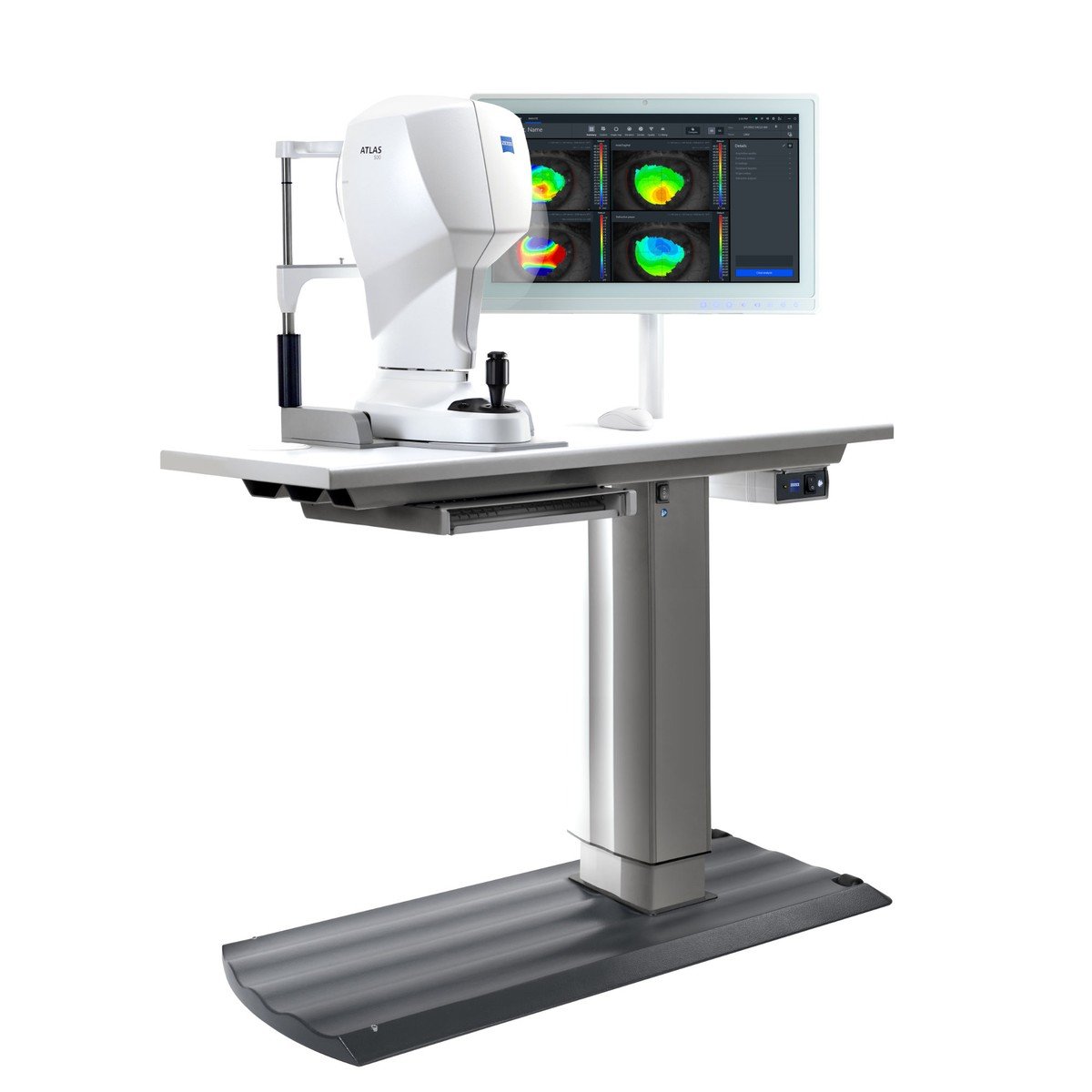

Corneal topographer
Topographic covering (in 42.2D)
9.3 mm
Accuracy
Type A (ISO 19980 / ANSI Z80.23, ISO 10343)
Measurement head position
Straight, +/- 15° swivel-out
Light sources
Placido white light LED 450-650 nm · fluorescence stimulation LED 465 nm · pupillometry LED 950 nm
Corneal topography views
Axial/sagittal and tangential curvature, elevation, Gaussian map, refractive power, corneal wavefront, PSF, MTF
Pupillometry
Static (photopic, mesopic, low mesopic, scotopic) and dynamic
Dimensions (W x H x D)
319 mm x 504 mm (+/- 15 mm) x 420 mm
Weight of measurement head
12.2 kg
Power supply
100 V to 240 V AC 50/60 Hz
Specifications taken from the ZEISS product brochure. Configuration options may vary — contact AMK for a detailed proposal.
