Diagnostic Imaging

HD-OCT and AngioPlex OCTA. Available in Azerbaijan.

Name: ZEISS Cirrus 6000
Brand: ZEISS

The ZEISS Cirrus 6000 combines high-speed OCT imaging with AngioPlex optical coherence tomography angiography (OCTA) — providing comprehensive structural and vascular assessment for retinal disease and glaucoma. Available through AMK in Azerbaijan.

Cirrus HD-OCT 6000AngioPlex OCTARetinal ImagingGlaucoma Module

Request a Quote → Book a demo ← Back to Ophthalmology

View official product page on ZEISS.com

Cirrus 6000 Brochure (PDF, 2.4 MB)

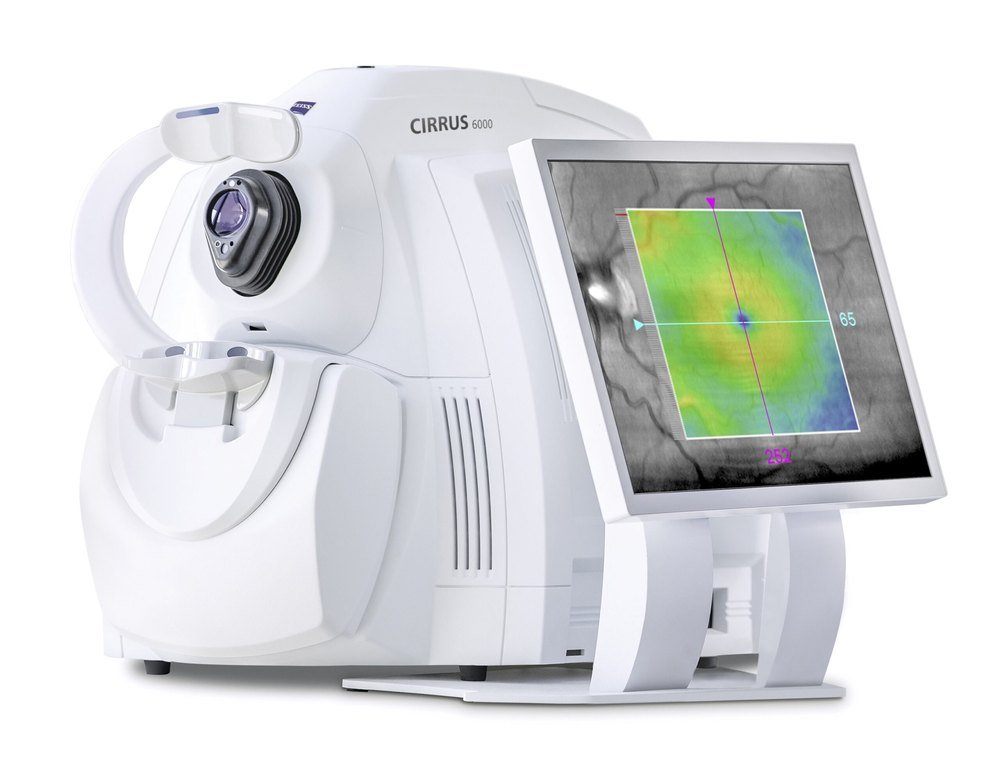

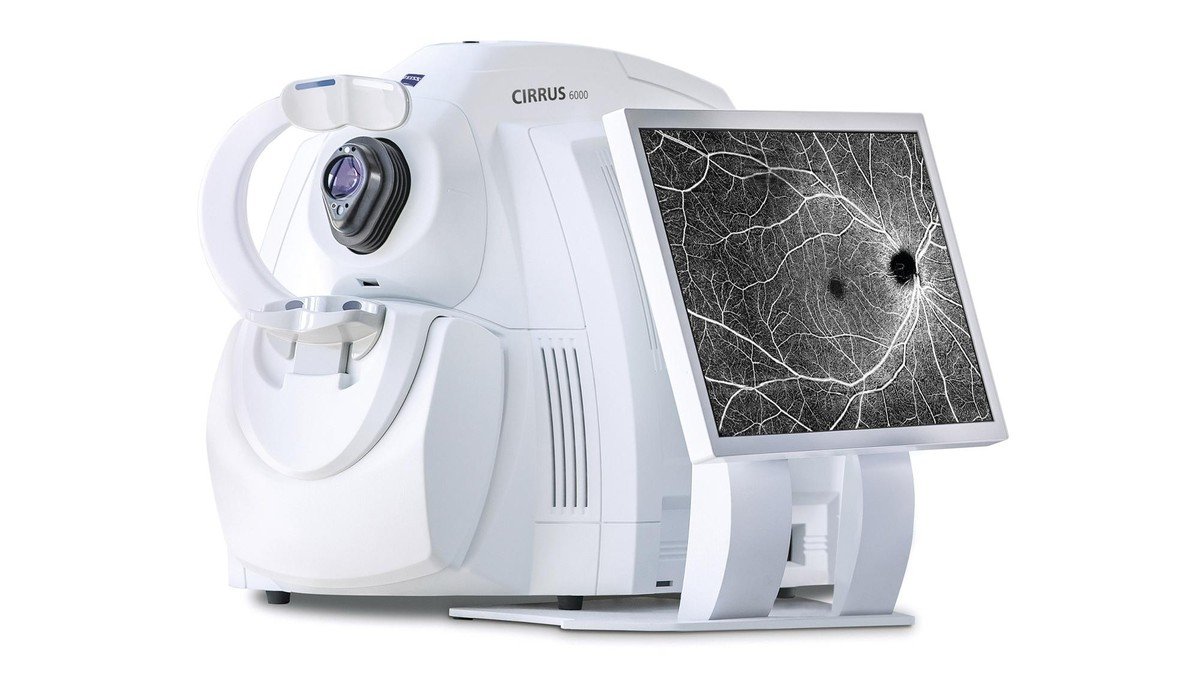

ZEISS Cirrus HD-OCT 6000 — high-speed OCT with AngioPlex OCTA capability.

More images

What This Category Covers

Built for the work you actually do.

100,000 A-scans/second

High-speed scanning enables wide-field retinal imaging and dense OCTA scans with minimal motion artefact — even in challenging patients.

AngioPlex OCTA

Visualises retinal and choroidal vasculature without dye injection — detecting neovascularisation, capillary dropout and flow changes in retinal disease.

Glaucoma Module Premium Edition

Ganglion cell analysis, RNFL thickness mapping and guided progression analysis for early glaucoma detection and monitoring alongside HFA3 perimetry.

Wide-Field Imaging

12mm scan patterns for peripheral retinal assessment — extending beyond the standard macular and disc fields.

ZEISS Retinal Ecosystem

Integration with FORUM EMR, CLARUS widefield fundus imaging and HFA3 perimetry for a connected, efficient diagnostic workflow.

AI-Assisted Analysis

Automated segmentation and reference database comparison to support efficient clinical interpretation.

Where It's Used

Applications across the field.

Age-related macular degeneration (AMD)

Early detection and monitoring of neovascular AMD using AngioPlex OCTA and structural OCT — supporting anti-VEGF treatment decisions.

Diabetic retinopathy

Assessment of diabetic macular oedema, capillary non-perfusion and neovascularisation for treatment planning and monitoring.

Glaucoma

Combined structural (RNFL, ganglion cell) and functional (HFA3) assessment for comprehensive glaucoma management.

Retinal vascular disease

Retinal vein occlusion, microaneurysm detection and vascular mapping using AngioPlex OCTA.

Why Order Through AMK

The same ZEISS equipment. With local expertise you won't get anywhere else.

As the exclusive ZEISS representative in Azerbaijan, we offer the full ZEISS catalogue — including the complete ZEISS Cirrus 6000 range — with a level of local support that no international distributor can match.

24-Hour Service Response

Our Baku-based service engineers respond to service calls within 24 hours — no waiting for technicians to arrive from abroad.

Training in AZ, RU & EN

Operator and technician training delivered on-site at your facility in Azerbaijani, Russian or English — whichever your team prefers.

Service Contracts Available

Protect your investment with a tailored service contract — covering scheduled maintenance, calibration and priority response for breakdowns.

Import & Documentation Support

We assist with import documentation and clearance for Azerbaijan — reducing the administrative burden on your procurement team.

Demo Units for Select Products

Demo units are available for selected products — contact us to arrange an evaluation at your facility before committing to a purchase.

Full Installation & Commissioning

Every system is installed and validated at your facility by our qualified engineers — with full handover documentation before you take delivery.

You Might Also Need

Related equipment.

Ready to order ZEISS Cirrus 6000 for your facility?

All models are available for Azerbaijan. We handle installation, training and after-sales service locally — contact us for a quote or to arrange a demo.

Request a Quote → Learn about our service →

Complete the clinical workflow

These ZEISS systems are commonly used together in the same care pathway.

HFA3Visual field analyser CLARUS 700Widefield fundus imaging Slit LampsAnterior segment exam

Technical Specifications

Methodology

Spectral domain OCT

Optical source

Superluminescent diode (SLD), 840 nm

Scan speed

100,000 A-scans per second

A-scan depth

2.0 - 2.9 mm (in tissue)

Resolution

Axial 5 μm (in tissue), 1.95 μm (digital); transverse 15 μm (in tissue)

Min. pupil diameter

2.0 mm

Refractive error adjustment

-20D to +20D

Fundus imaging

Line Scanning Laser Ophthalmoscope (LSO), SLD 750 nm, field of view 36×30 degrees

Posterior segment scans

OCT Cube (Macula and Optic Disc); HD Raster (1, 5, 21-line, cross and radial), 3-12 mm, averaging up to 100x

OCTA scans

3×3, 6×6, 8×8, 12×12 mm (Macula); 4.5×4.5 mm (Optic Nerve Head); 14×10 mm and 14×14 mm (Montage)

Anterior segment scans

Cube, HD Cornea, Pachymetry, HD Angle, Wide Angle-to-Angle, Anterior Chamber, 5-Line Raster

Weight

35 kg (77 lbs) (without monitor)

Dimensions (L × W × H)

62.2 × 42.5 × 29.2 cm (24.4 × 16.7 × 11.4 in) (without monitor)

Input power

230V, 100/120V, 50-60Hz · IEC 60601-1 Class I

Specifications taken from the ZEISS product brochure. Configuration options may vary — contact AMK for a detailed proposal.
