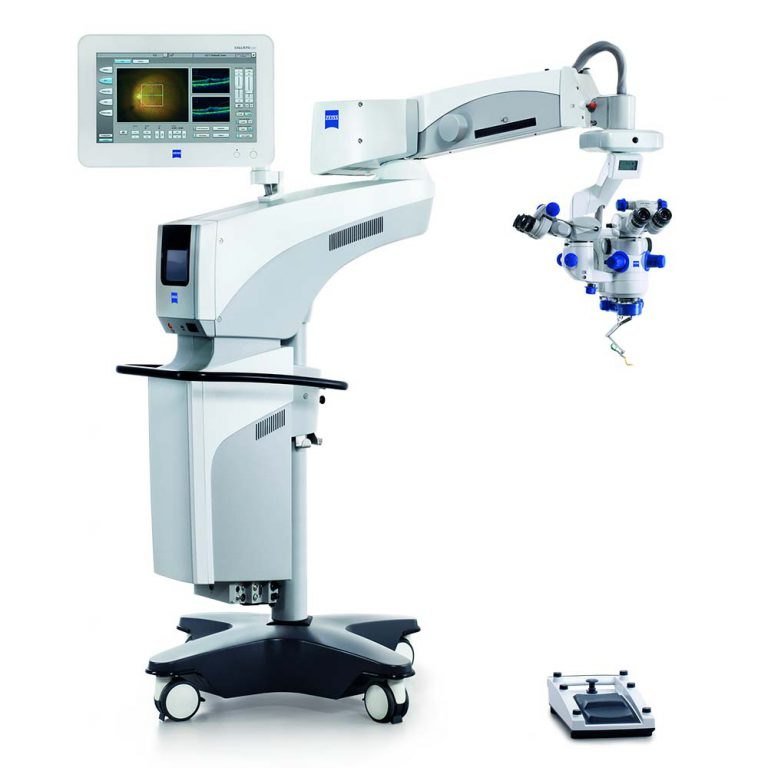

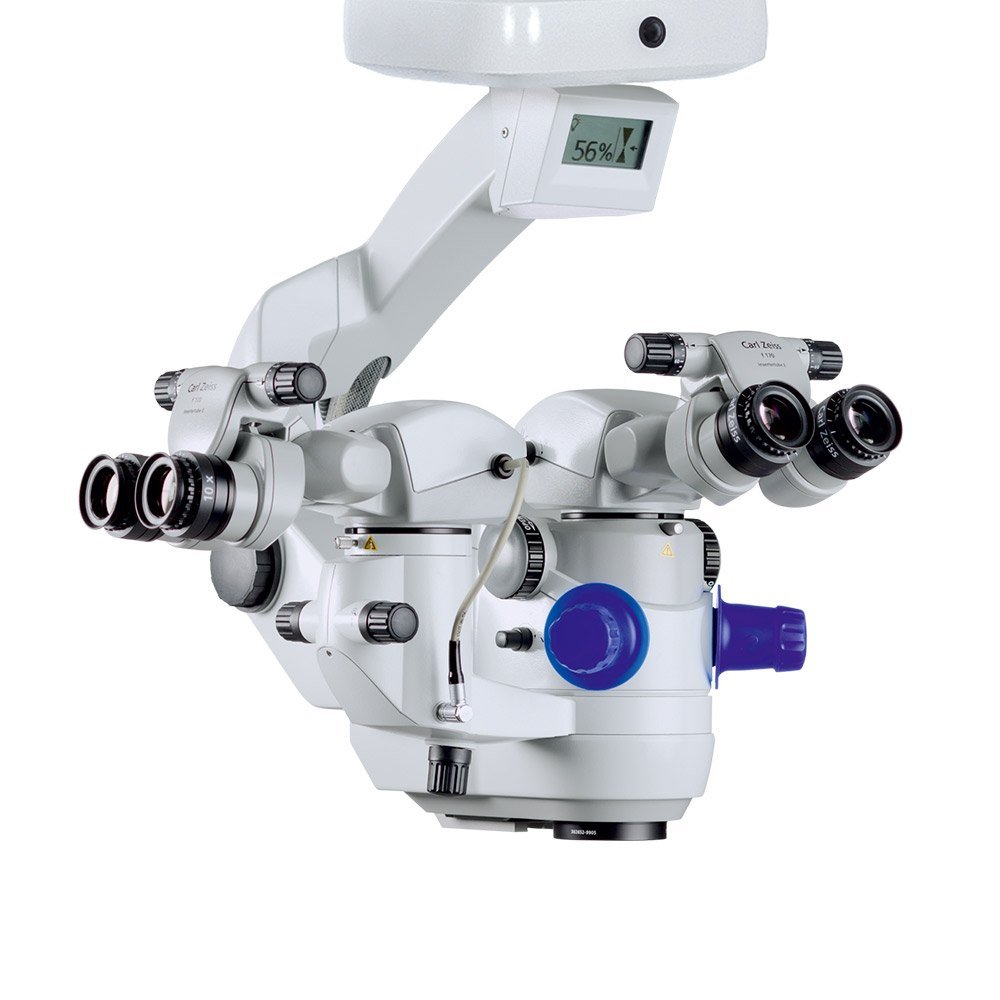

Surgical microscope
Motorized zoom system with apochromatic lens, zoom ratio 1:6; magnification factor = 0.4 x – 2.4 x
Focusing
Electric / motorized, focus range: 70 mm
Objective lens
f = 200 mm (optionally also f = 175 mm or f = 225 mm with support ring)
Binocular tube
Invertertube E (optionally also Invertertube, 180° swivel tube f = 170 mm, inclined tube f = 170 mm)
Eyepiece
Wide-angle eyepiece 10 x (optionally also 12.5 x)
Illumination
SCI: Coaxial and full-field illumination; fiber-optic illumination
Light source
Superlux® Eye xenon short arc reflector lamp with backup lamp in housing · LED, near-daylight, 50,000 hour lifetime at 50% light intensity
Filters
HaMode filter · 25% gray filter (LED) · blue blocking filter · optional fluorescence filter
Integrated slit illuminator
Slit widths: 0.2 mm, 2 mm, 3 mm, 4 mm; slit height: 12 mm
XY coupling
Travel range: max. 61 mm x 61 mm; automatic centering at the touch of a button
Stand
Spring arm takes max. 9 kg of additional accessories with the microscope (without tube, eyepiece, objective lens) and XY coupling attached
ZEISS intraoperative OCT
SD (spectral domain) OCT, wavelength 840 nm, 27,000 A-scans per second
OCT scan parameters
A-scan depth: 2.9 and 5.8 mm in tissue · axial resolution: 5.5 µm in tissue · scan length adjustable 3–16 mm, scan rotation adjustable 360°

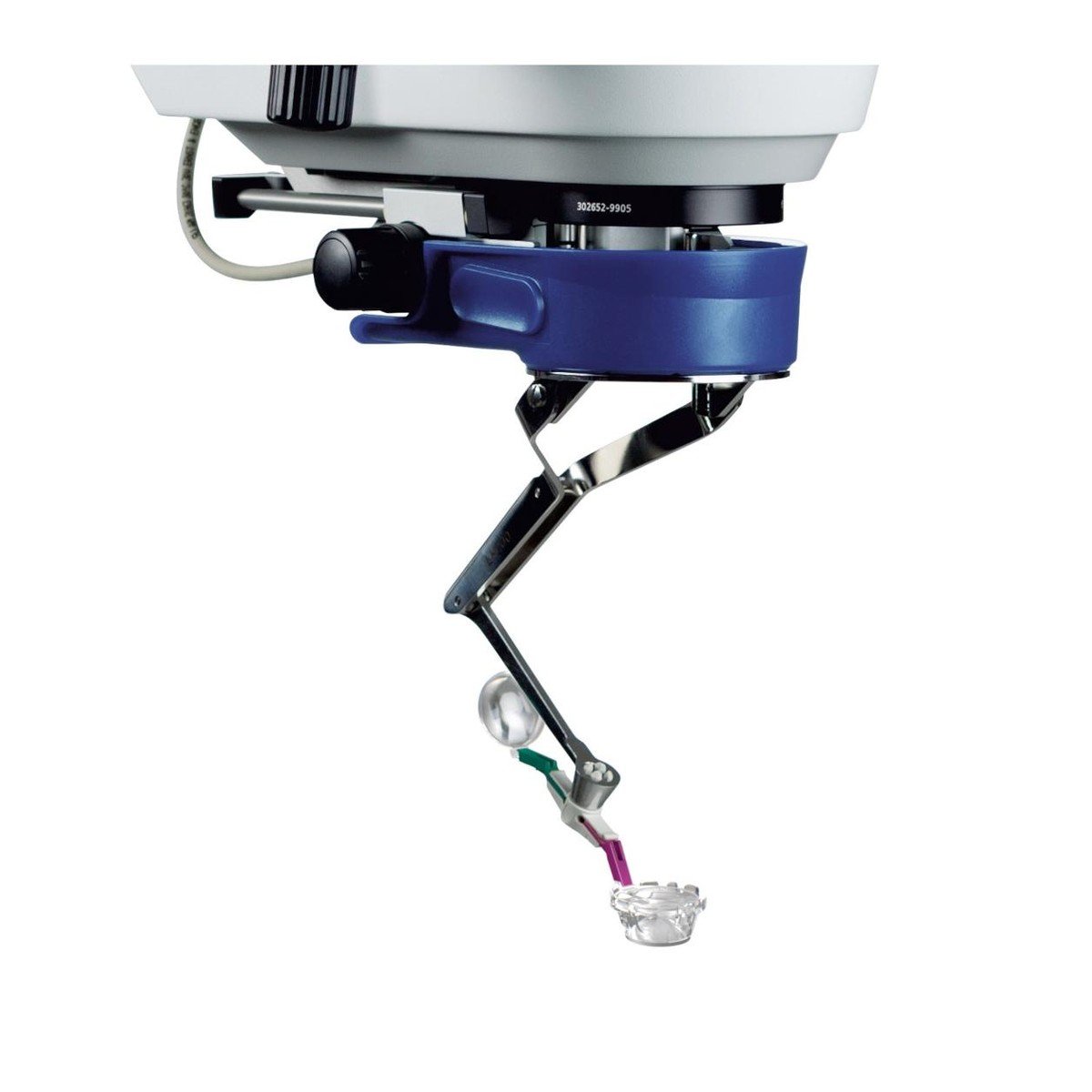

ZEISS RESIGHT family
Focus range 31 mm (LH175) / 38 mm (LH200) · lenses 60D, 128D · weight 0.45 kg (RESIGHT 500), 0.50 kg (RESIGHT 700)
Specifications taken from the ZEISS product brochure. Configuration options may vary — contact AMK for a detailed proposal.
