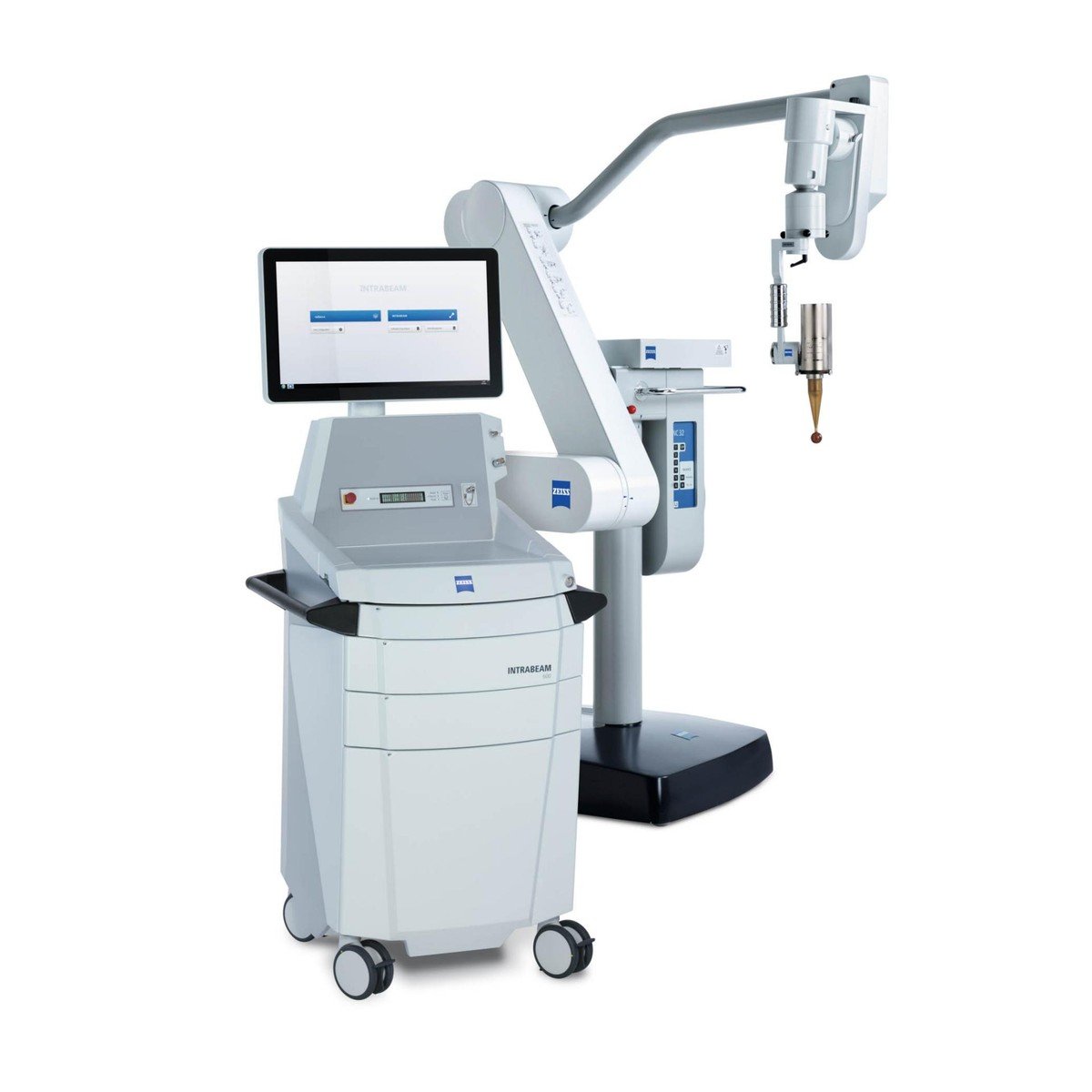

Radiation delivery
Point-source type X-ray emission; spherical dose distribution around the isocenter of the X-ray source (XRS)
Selectable operating parameters
40 kV / 40 µA; 50 kV / 5, 10, 20 or 40 µA (acceleration voltage / beam current)
Dose gradient
Steep dose gradient (approx. 1/r3) in water (soft tissue equivalent)
Positional accuracy of delivered dose
+/- 1 mm at 40 mm treatment diameter (from isocenter)
Probe
Diameter 3.2 mm, length 100 mm, coated with chromium nitride (CrN)
Applicator types
Spherical (intracavity/intraoperative) · Needle (interstitial) · Flat and Surface Sets for exposed surfaces
Applicator sizes (ø in mm)
Spherical 15, 20, 25, 30, 35, 40, 45, 50 · Needle 4.4 · Flat 10, 20, 30, 40, 50, 60 · Surface 10, 20, 30, 40
Applicator usage
Spherical, Flat and Surface Applicators reusable; Needle Applicator single use
Anatomical sites
Any part of the human body (not intended for use on the heart or in the central circulatory system)
Workplace weight
Max. 155 kg / 341.72 lbs. with full configuration
Workplace dimensions
900 × 1690 × 600 mm / 35.43“ × 66.54“ × 23.62“ (width × height × depth)
Workplace power
Switchable (115 V) 110 V – 125 V or (230 V) 220 V – 240 V, 50 Hz – 60 Hz, connected load 300 VA
Control Console 600
4.5 kg / 9.92 lbs.; 305 × 89 × 381 mm (W × H × D); input 100 V – 240 V, 50 Hz – 60 Hz, 60 VA

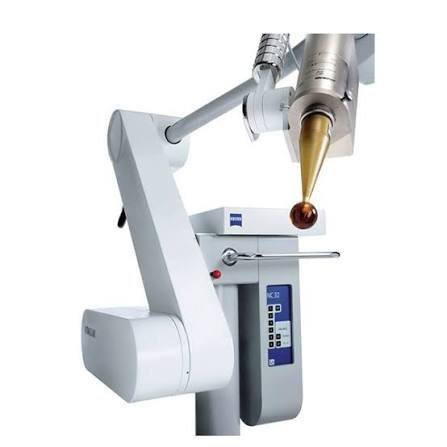

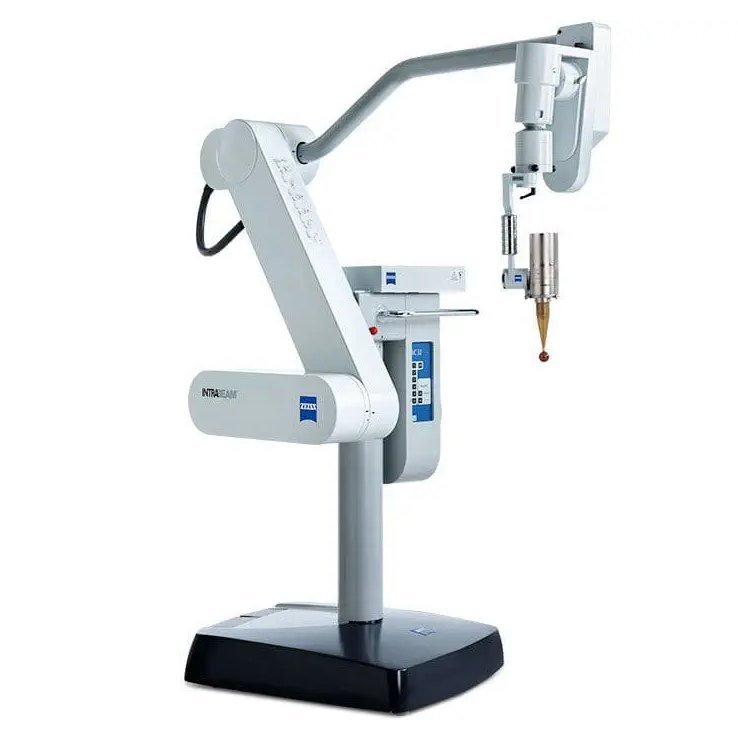

NC32 INTRABEAM Floor Stand
100 V / 115 V / 230 V, 50 – 60 Hz, max. 400 VA; Type B, IPX0, protection class I
Specifications taken from the ZEISS product brochure. Configuration options may vary — contact AMK for a detailed proposal.
